Rugged Glass Mat Thermoplastic (GMT) Transit Cases

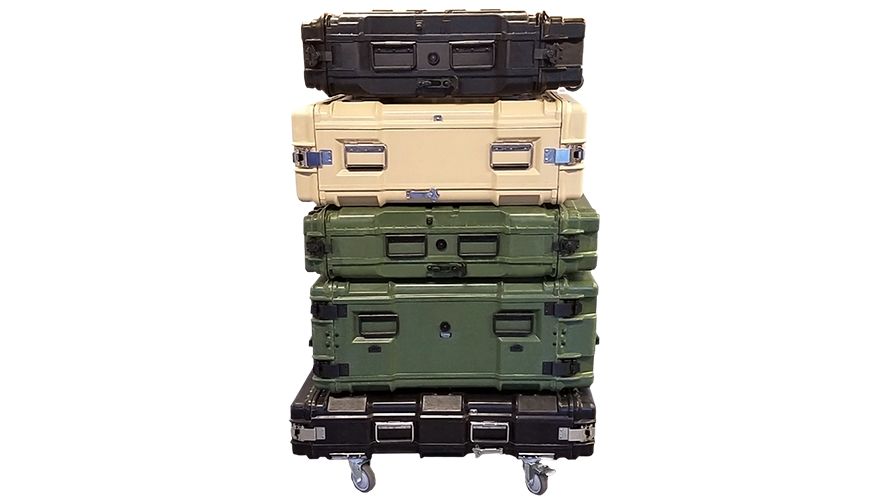

CPI Antenna Technologies' 2400, 2800 and 3400 Series Rack-Mount Cases combine rugged durability with a lightweight design. The cases also have the added utility of slide-mounted 19-inch (48.2 cm) slide-out racks that allow unlimited access to electronic equipment during installation, integration and maintenance.
  • Designed from durable, lightweight GMT composite material
  • Available with wing-turn latches and center grip handles
  • Watertight and rugged for harsh environments
  • Available from 3U-14U rack heights and 20”, 24” & 30” rack depths

FEATURES

  • Durable GMT (Glass Mat Thermoplastic) composite case exterior
  • Slide-out riveted aluminum CEA 310 rack with a minimum of eight multi-axis shock mounts
  • 10-32 nut-bar fasteners for optional equipment panels
  • Two removable covers and external draw pull latches
  • Watertight closures
  • Molded-in, case-to-case stacking standard
  • Recessed hardware
  • Available from 3U-14U in rack height with case front-to-back depths of 24” (60.9 cm) and 28.5” (72.3 cm) with rack depths of 20” (50.8 cm) and 24” (60.9 cm).
  • Also available in 3U-9U rack heights at 34” (86.4 cm) case front-to-back depth and 30” (76.2cm) rack depth
  • Durable at temperatures exceeding -20° F (-29° C) to +185° F (85° C)
  • Designed for equipment weights up to 150 lbs (68.2 kg) standard
  • Series 3400 cases may be custom reinforced to accommodate equipment weights up to 230lbs (104.5 kg)
